In-Line Real Time Particle Analyzer

Eyecon2 in time particle analyzer, for the analysis and profiling of powders and bulk solids, is a new generation direct imaging system that generates real-time on screen images, particle size and shape information for batch and continuous processes.

Professional analysis software can calculate the particle size one by one, and finally calculate the overall particle size distribution(PSD).It can be used to analyze the size and distribution of powders and particles.

In-Line real time particle analyzer can monitor the granulate growth, counts, analyzes and records the data at each monitoring time point, and forms a final report.

By using in-Line real time particle analyzer to monitor the particle size distribution of different batches, it is possible to grasp the changing process of particle size and provide accurate data support for the judgment of process end point.

In line real time monitoring and offline analysis

Non-product contact

Non-destructive

Monitoring and recording of the whole production

Fast non-invasive interfacing/ Portable/Transferable

Measures wet and dry particles

Data integration and control via OPC and HMI

Application Field

Granulating/Coating/Drying/Spheronizing/Milling

Milling coffee

Continuous FBG Feed Additive

Coating Fertilizer

Milling Feed Additive

High Shear Seeds

Fluid Bed Granulation Baby Formula

High Shear Catalyst

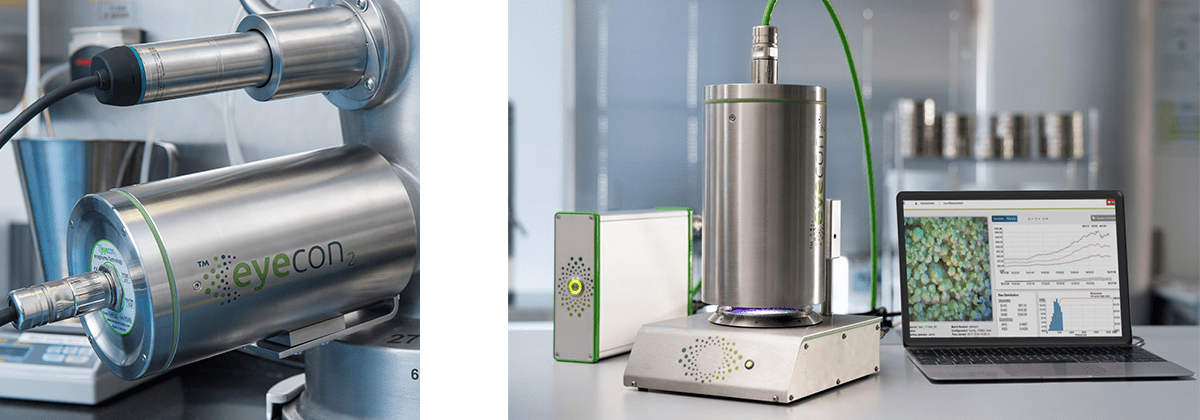

Application Demonstration

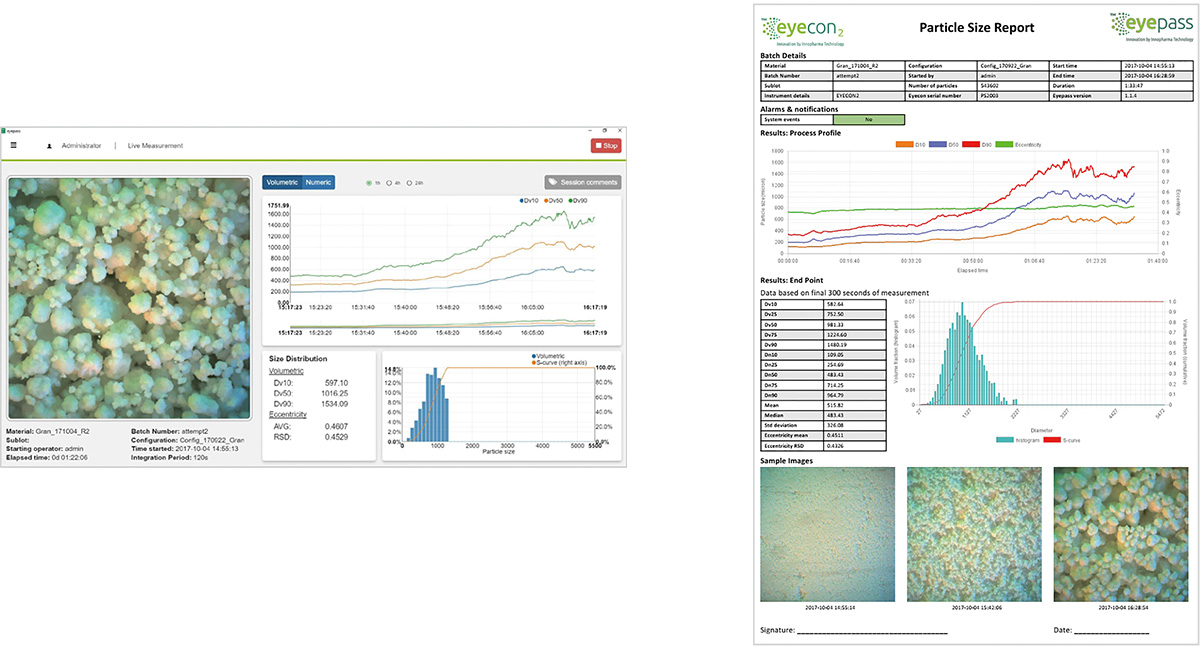

Report









Specification

In-Line Real Time Particle Analyzer

Size Range 50-5500μm

Size
Measurement Data

D10, D25, D50, D75, D90 in numeric and volumetric with Mean and Median values all trended
in real time, with live histogram and S-curve results. Includes process deviation alarm

Shape
Measurement Data
Eccentricity Average, Eccentricity RSD, Range 0-1 Mean eccentricity and relative standard deviation of eccentricity
Data Processing EyePASS™ real time particle analysis software installed on a dedicated IPC/PC/Laptop with Windows 10
Measurement Time ~ 5 seconds per image
Imaging Area 11.25×11.25mm
GMP Eye PASS is compliant with 21 CFR Part 11 & GAMP5 .



* All rights for changes reserved.
