Automatic Ultrafiltration System

The control mode can be divided into constant transmembrane pressure and constant flow, which can meet the requirements of customers for ultrafiltration concentration and dialysis.

The membrane cassette holder is suitable for most brands of ultrafiltration membrane cassettes,such as GE,PALL,MILLIPORE.

Low shear pump,rotor pump or quaternary diaphragm pump.

ASME-compliant Pipelines&No dead angle valves.

Formulation module program editing process.

Electronic signature,electronic record and audit trail functions.

Reliable data management: data logs are recorded in real time, traceable and cannot be changed, and no data will be lost when power is off.

Specification

Automatic Ultrafiltration System

Model CSATS series automatic ultrafiltration system
Pump Type and
Maximum Flow
Diaphragm pump(150-4400L/h)Rotor pump (2100-3600L/h)
Explosion-proof pressure (Max.) 6bar
Circulation Tank Optional
Connection Mode Hard pipe/hose
Material 316L

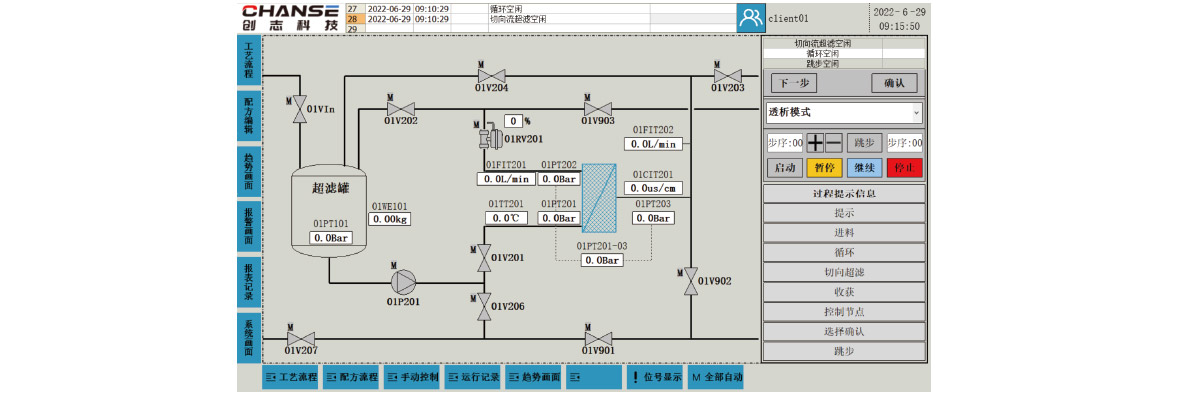

Software Introduction





The software is designed according to the requirements of GMP5 and FDA11CFR Part11.Depending on the process,It can operate parameters,preset programs,and call module editing.Various parameters during the operation of the equipment are recorded in special files.













Pre-Designed Programs

Function Content
System Startup Automatic production preparation check
Ultrafiltration
Membrane Cassette Test
Integrity test and water flux test
Ultrafiltration Membrane
Cassette Pre-flushing
Pre-equilibration of cassettes with buffer and feed solution
Ultrafiltration
Concentration
Concentrate the feed solution to a predetermined volume
Fluid Change Change the target product to the preset buffer system
Material Receiving Collect all samples
CIP Use purified water,injection water or NaOH to clean and flush the junction
System Shutdown Generate a report of batch production data automatically
