Mini-CG Lab Type High Shear Mixer/ Wet granulator

It works by using the intense agitation to make the materials do axial, radial and tangential movement, resulting in uniform mixing. Then, the materials will be cut into spherical particles by high-speed chopper.

It adopts the traditional horizontal cylinder and cone structure, which has high tumbling efficiency and good material uniformity. The strong competitiveness of our wet granulator lies in higher production efficiency, higher yield, easy operation, better reproducibility and better uniformity. The produced particles have good uniformity, less fine powder and good fluidity.

Better scale-up, real-time, realistic and sensitive key process parameters.

The bottom and wall of the container are materials free, and the spherical outlet can make all the materials discharge completely The process endpoint can be controlled by torque.

It can be applied to the experimentation and production of DPI products.

Good performance of mechanical seal and hermetic seal.

At a mixing ratio of 1:0.00078, the RSD can reach below 0.5%.

The cooling layer design is suitable for granulation with temperature control.

The heating layer design is suitable for melt granulation.

Multi-function: it can complete the dry-blending, wet blending and granulation, complied with cGMP, shortening the production time.

Application Field

The application fields include tablets, capsules, granules, fine particles, inhalants, etc. For example, it can be used for herbal granules, chemical medicine granules, dry powder mixing, etc.

chemical medicine granules

chemical medicine granules

herbal granules

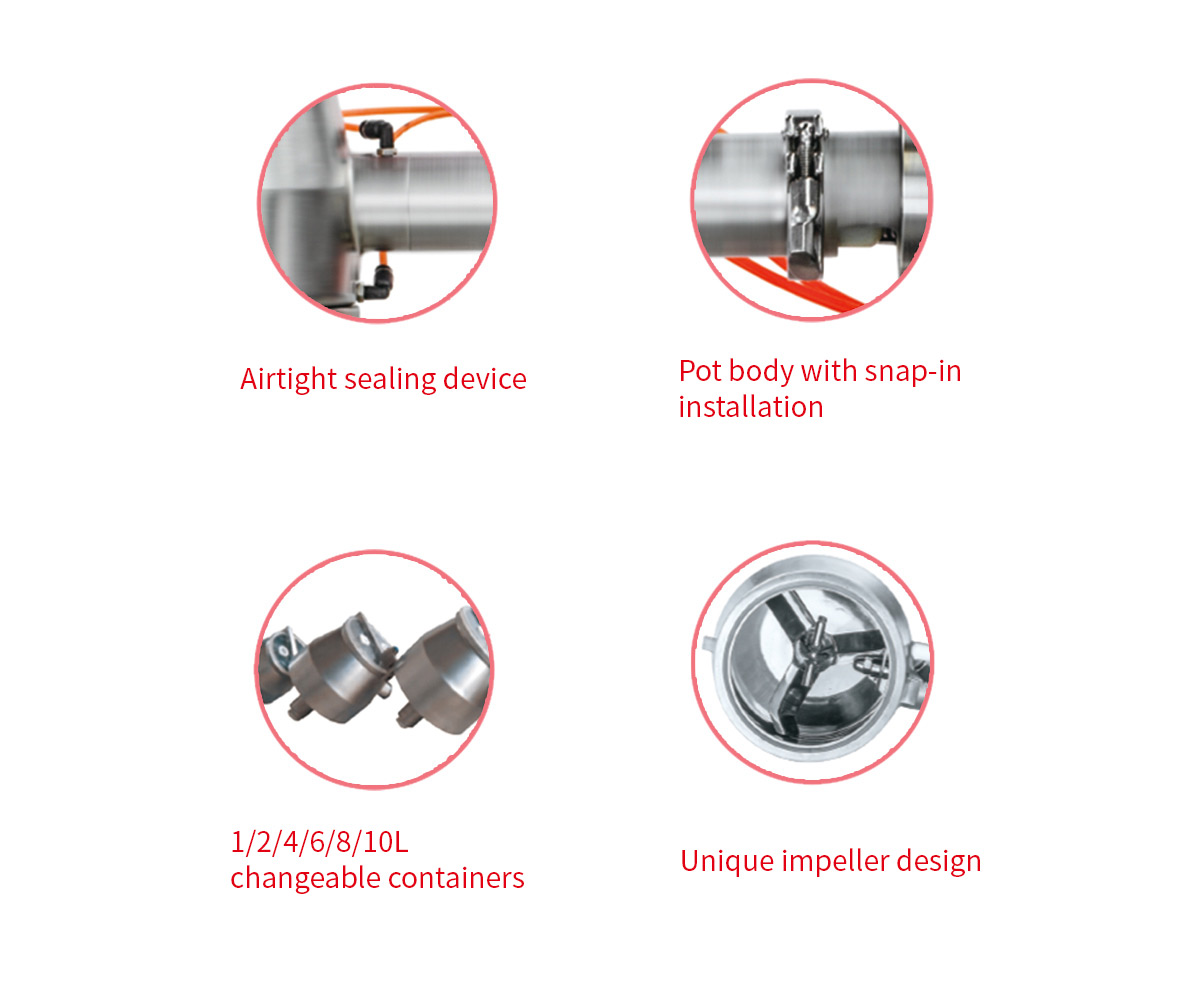

Product Details



Specification

Mini-CG Lab Type High Shear Mixer/ Wet granulator

Model Mini-CG
Working volume(L) 1/2/4/6/8/10
